Ericsson
ECP-206
Q1:
What is the correct abbreviation for the IP address: BFEA:DACA:0000:0000:9390:0000:0000:D91?
○
A
BFEA:DACA::9390::D91○
B
BFEA:DACA::9390:0:D91○
C
BFEA:DACA::D91/6○
D
BFEA:DACA::9390:0:0:D91
Ericsson
ECP-206
Q2:
Which two features does IPsec provide? (Choose two.)
☐
A
protecting the length of packets from discovery☐
B
protecting packets from modification☐
C
controlling the path through the network☐
D
hiding the content of packets from observation
Ericsson
ECP-206
Q3:

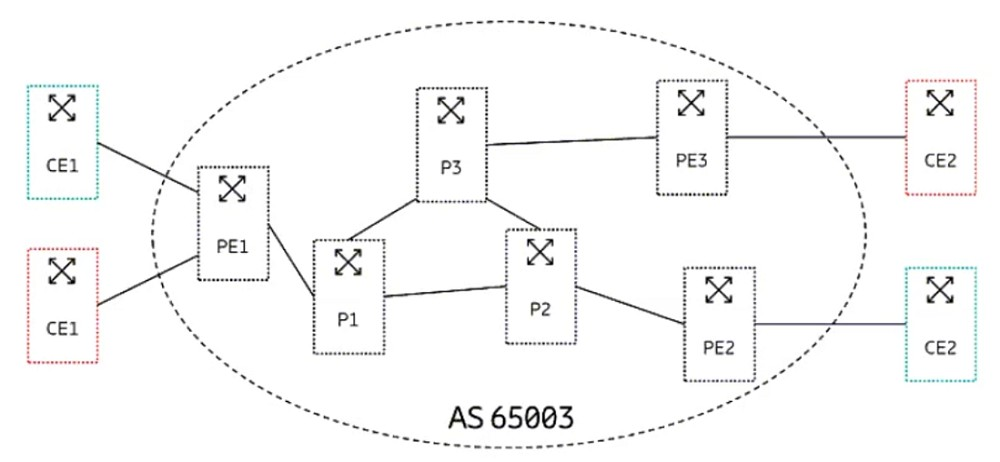

Review the exhibit.
A service provider wants to provide L3VPN for two customers (indicated by red and
green in the exhibit).
Referring to the exhibit, which statement is correct?
○
A
The two customers cannot use overlapping IP prefixes.○
B
MP-BGP should be configured on all the service provider's routers (Ps and PEs).○
C
LDP must be configured between PE and CE○
D
The service provider's P routers are not aware of the customers' routes.
Ericsson
ECP-206
Q4:
What is the maximum number of unique VLAN IDs available?
○
A
2048○
B
3192○
C
4096○
D
16384
Ericsson
ECP-206
Q5:
An operator wants to ensure that they can differentiate their traffic types for the purpose of prioritization in their Ethernet LAN and IP/MPLS backbone.
Which three fields would be used? (Choose three.)
☐
A
Traffic Class (TC)☐
B
ECN☐
C
DSCP☐
D
VID☐
E
PCP
